Zhongsha BPS-D16 Visual Counting Machine with 16 Independent Channels, 99.9% Accuracy, and 12000pcs/min Speed for Pharmaceutical Production

Name: Zhongsha BPS-D16 Visual Counting Machine with 16 Independent Channels, 99.9% Accuracy, and 12000pcs/min Speed for Pharmaceutical Production
Brand: SHARK & JANGLI GROUP COMPANY
SKU: BPS-D16
Price: 39,900.00 USD
Availability: InStock

Detalhes do produto

Lugar de origem: China

Marca: SHARK

Certificação: CE

Número do modelo: BPS-D16

Termos do pagamento & do transporte

Quantidade de ordem mínima: 1 CONJUNTO

Preço: 27800-52000 USD

Detalhes da embalagem: caixa de madeira

Tempo de entrega: 9 semanas

Termos de pagamento: T/T,L/C

Habilidade da fonte: 100 por ano

Obtenha o melhor preço

Converse agora

Especificações

Descrição

Especificações

Destacar:

Modelo::	BPS-D16	Canal de contagem::	16 canais independentes
Material::	Aço inoxidável 304 e liga de alumínio	Precisão de contagem::	Até 99,9%
Velocidade máxima de saída::	12.000 unidades/min (20–40 garrafas/min)	Padrão de Conformidade::	Certificado GMP

Modelo::	BPS-D16
Canal de contagem::	16 canais independentes
Material::	Aço inoxidável 304 e liga de alumínio
Precisão de contagem::	Até 99,9%
Velocidade máxima de saída::	12.000 unidades/min (20–40 garrafas/min)
Padrão de Conformidade::	Certificado GMP

Descrição

Zhongsha BPS-D16 Visual Counting Machine with 16 Independent Channels, 99.9% Accuracy, and 12000pcs/min Speed for Pharmaceutical Production

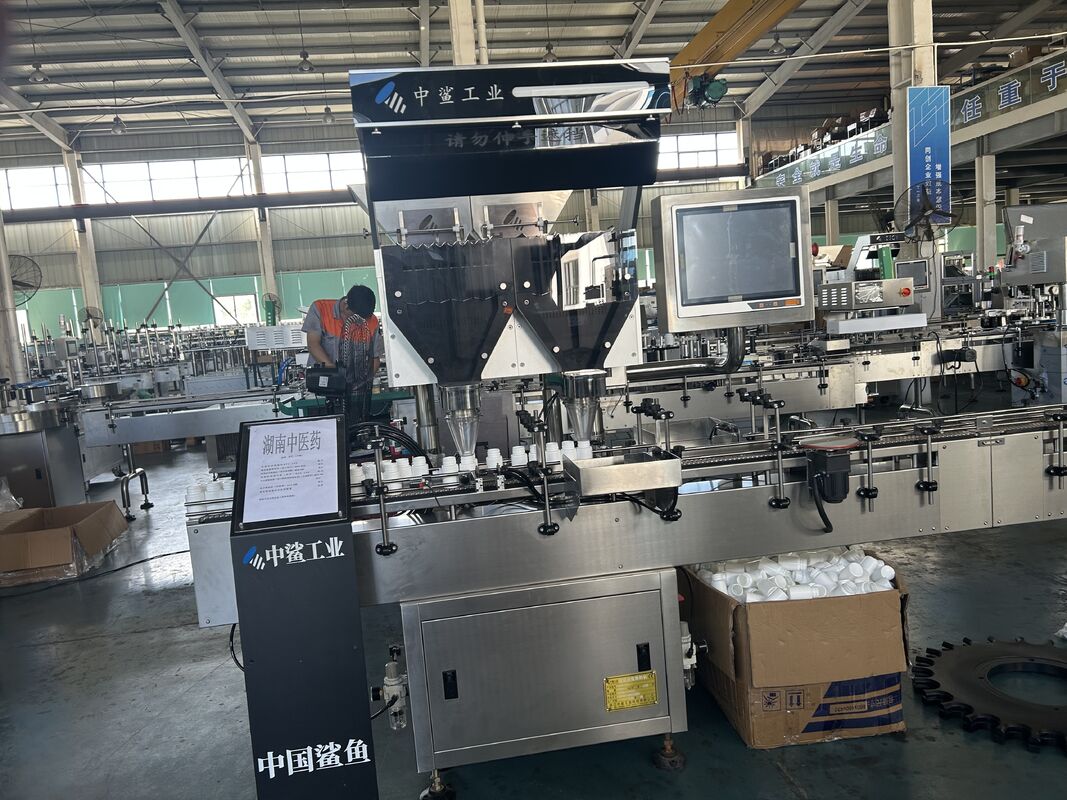

Zhongsha BPS-D16 Visual Counting Machine

High-Stability GMP Production Counter

BPS-D16 is built for pharmaceutical and nutraceutical plants where counting stability matters in daily production, not just in lab conditions. It adopts 16-channel split feeding design specially customized for complex workshops. It is designed to run in real factory environments—dust, mixed shapes, unstable feeding, and continuous operation—while keeping counting consistent and production flow steady.

Core Advantages & Design Logic

Overall Structural & Material Advantages

This machine adopts a compact structure with streamlined and elegant appearance. Most structural components are made of aluminum alloy, while the outer shell is crafted from premium 304 stainless steel plate, fully compliant with GMP production standards. The lightweight body facilitates convenient movement, disassembly and on-site handling.

Main drive components are enclosed inside the cabinet to avoid cross-contamination from transmission abrasion. All surfaces contacting raw materials undergo high-precision polishing, and an integrated dust collection box is equipped to reduce dust emission and maintain clean production environment.

Feeding & Counting Core Performance

Channel-style vibration feeding delivers even material conveying, ensuring low-noise, stable and reliable continuous operation. The vision inspection counting mode realizes fully automatic counting, with bottling error margin lower than national industry standards for ultra-high counting precision.

It is equipped with three-stage adjustable vibration feeding modules with imported spring vibration components, maintaining smooth, consistent material supply without blockage or material stacking.

Material recognition relies on linear array CCD camera paired with high-speed ARM processor, delivering high-resolution identification with strong anti-dust interference capability. Built-in self-diagnosis system automatically detects foreign impurities and rejects defective products, fundamentally guaranteeing counting accuracy.

Operational & Safety Optimization

Humanized ergonomic design supports easy operation, quick disassembly, thorough cleaning and fast component replacement. Feeding nozzles fit tightly with bottle mouths: preventing large-particle jamming and small-particle leakage, with auxiliary nozzle vibration to eliminate bottle mouth clogging for stable feeding.

Multiple safety protection devices are integrated: automatic halt for missing bottles/jammed bottles, automatic restart after fault clearance, and independent rejection unit for unqualified products.

The CCD counting system supports automatic fill light adjustment and outstanding dust resistance, sustaining high-precision counting even when processing dusty plain tablets, realizing long-term stable round-the-clock operation.

All control components adopt internationally standardized certified parts, passing strict on-site reliability testing to stabilize full machine operational performance.

Applications

BPS-D16 is used for solid dosage filling across pharmaceutical and nutraceutical production lines, including:

Industry	Products
Pharmaceutical	Tablets, Capsules, Pills
Nutraceutical	Vitamins, Supplements, Herbal Capsules
Food	Mints, Candy, Gummies
Veterinary	Animal Health Tablets

It handles a wide range of products such as tablets, capsules, softgels, irregular shapes, and small pellets.

Countable specifications: tablet diameter 3–23mm, capsule size 0–5#, pill diameter 3–12mm, adapting to mainstream solid dosage forms in global pharmaceutical factories.

Global Use & Customer Reference

BPS-D16 has been supplied to customers in North America, Europe, and Southeast Asia, where production requirements are strict and operating conditions vary significantly.

Used by manufacturers including:

Procaps (Colombia)
Sirio Pharma (Italy)
Catalent (Global CDMO)
HealthLab / Hardcap (North America)

In these environments, the focus is less on theoretical specifications and more on stable output, consistent counting, and reduced downtime during production.

Technical Specifications

Item	Specification
Model	BPS-D16
Counting Channels	16 independent channels
Max Production Speed	Max 12000 pcs/min, 20–40 bottles/min (product & filling quantity dependent)
Single Bottle Count Range	1–9999 pcs arbitrary setting
Countable Product Size	Tablet diameter 3–23mm, Capsule 0–5#, Pill diameter 3–12mm
Bottle Volume Range	15–300 ml
Vision System	Linear array CCD camera + high-speed ARM processor, auto light compensation, dust-resistant
Feeding System	3-stage adjustable imported spring vibration feeder
Accuracy	Up to 99.9% under validated conditions, error below national standard
Voltage	220V, 50/60Hz, Single-phase
Air Pressure Source	0.6 MPa
Air Consumption	13 L/min
Rated Power	1.2 Kw
Overall Dimension	220019001850 mm (height adjustable)
Total Weight	750 Kg
Contact Parts	304 stainless steel, food-grade polished finish, GMP compliant
Integration	Standard PLC interface, linkage with full packaging line

Frequently Asked Questions

Q1: Can it handle softgels or irregular shapes?

Yes. The system is designed to work with capsules, softgels, tablets, and irregular solid forms, covering all mainstream solid oral dosage forms.

Q2: Does it require recalibration when switching products?

No. Recipes can be stored and recalled directly from the HMI. Minor adjustments can be made on-site if needed, supporting fast product changeover.

Q3: How does it perform in dusty environments?

The vision system compensates for lighting changes and features dedicated dust-resistant structure, stable counting for dusty raw tablets under regular production dust conditions. The built-in dust box further optimizes internal dust accumulation.

Q4: How long does changeover take?

Usually between 5 and 15 minutes depending on product and bottle size, benefited from modular quick-disassembly structural design.

Q5: Is installation required on-site?

Installation support can be provided if required. A full operation manual is also supplied with the machine, and standardized international component configuration simplifies after-sales maintenance.

Q6: Warranty period?

12 months from commissioning.
