Product Details
Place of Origin: China
Brand Name: shark
Certification: CE
Model Number: BPG-200
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 5300-17000 USD
Packaging Details: wooden case
Delivery Time: 9 weeks
Payment Terms: T/T,L/C
Supply Ability: 100 per year
Products: |
Desiccant Inserting Machine |
Model: |
BPG-200 |
Max.speed: |
130 Bottles/min |
Net Weight: |
280kg |
Voltage: |
220v |
Frequency: |
50Hz |
Total Power: |
0.5kw |
Products: |
Desiccant Inserting Machine |
Model: |
BPG-200 |
Max.speed: |
130 Bottles/min |
Net Weight: |
280kg |
Voltage: |
220v |
Frequency: |
50Hz |
Total Power: |
0.5kw |

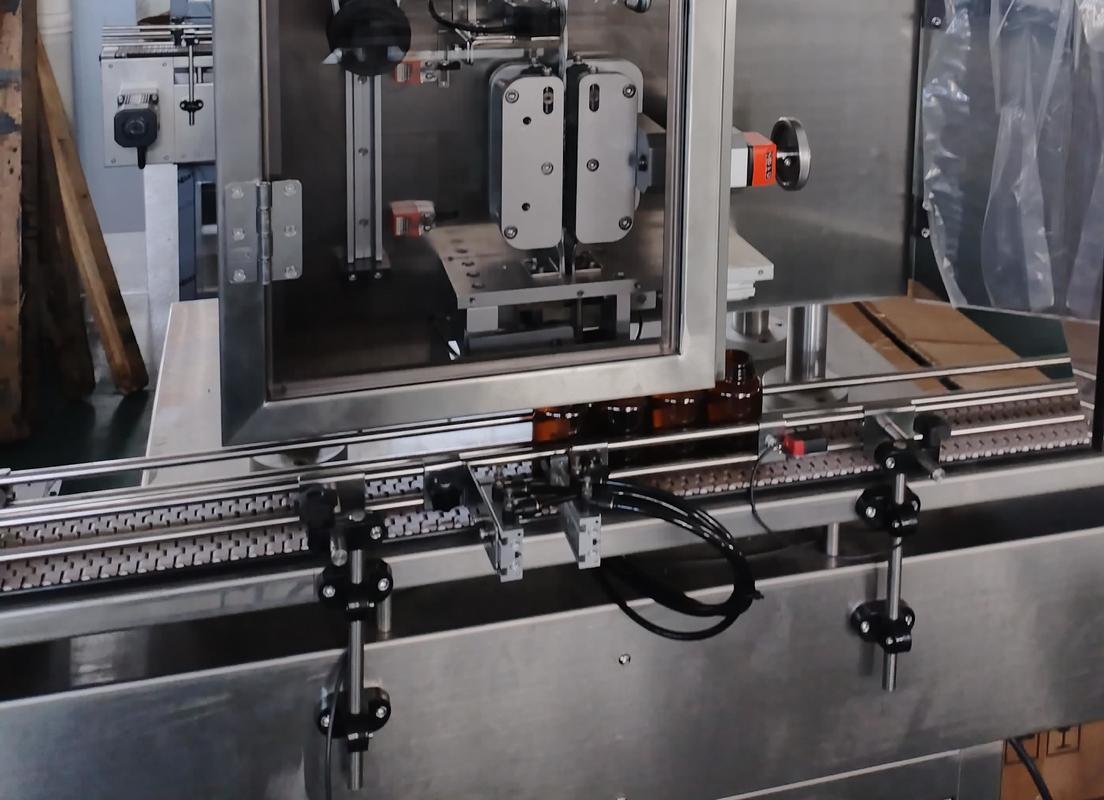

MediSeal Automatic Desiccant System
| projects | parameters |
| max.speed | 130 bottles/min |
| bottle volume(ml) | within 350ml |
| desiccant roller specificatiion(mm) | Extermal diameter within 300mm,inner diameter is 75mm,the thickness of desiccant between 90mm and 140mm. |
| dessicant bag specification | The width of desiccant bag can't wider than 35mm,the length of desiccant bag depends on bottle and packing amount |
| voltage/frequency(V/Hz) | 220/50 |
| total power(kw) | 0.5 |
| air consumption(m³/h) | 0.1 |
| net weight (kg) | 280 |
1.Core Purpose
This automated system delivers precise desiccant insertion in pharmaceutical packaging, controlling moisture to preserve drug quality and extend shelf life. It enhances production efficiency while meeting strict pharmaceutical regulatory standards.
2.Operational Mechanisms
Desiccant Management: Sorts and dispenses sachets or canisters with accurate placement in packaging.
Calibrated Dosing: Adjusts quantities based on bottle size and moisture protection requirements.
Line Integration: Connects with packaging equipment via sensors for synchronized production flow.
3.Machine Features
High-speed performance: up to 200 packages per minute.
PLC control ensuring minimal placement errors.
User-friendly interface with real-time metrics.
GMP-compliant stainless steel construction.
Adaptable to various packaging and desiccant types.
4.Shipping & Packaging
Foam-wrapped in custom sturdy boxes.
Domestic and international shipping via trusted couriers.
Includes manual and tracking for delivery monitoring.
