SHARK & JANGLI GROUP COMPANY
Product Details
Place of Origin: China
Brand Name: shark
Certification: CE
Model Number: BPG-200
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 5300-17000 USD
Packaging Details: wooden case
Delivery Time: 9 weeks
Payment Terms: T/T,L/C
Supply Ability: 100 per year
Products: |
Desiccant Inserting Machine |
Model: |
BPG-200 |
Max.speed: |
130 Bottles/min |
Net Weight: |
280kg |
Voltage: |
220v |
Total Power: |
0.5kw |
Products: |
Desiccant Inserting Machine |
Model: |
BPG-200 |
Max.speed: |
130 Bottles/min |
Net Weight: |
280kg |
Voltage: |
220v |
Total Power: |
0.5kw |

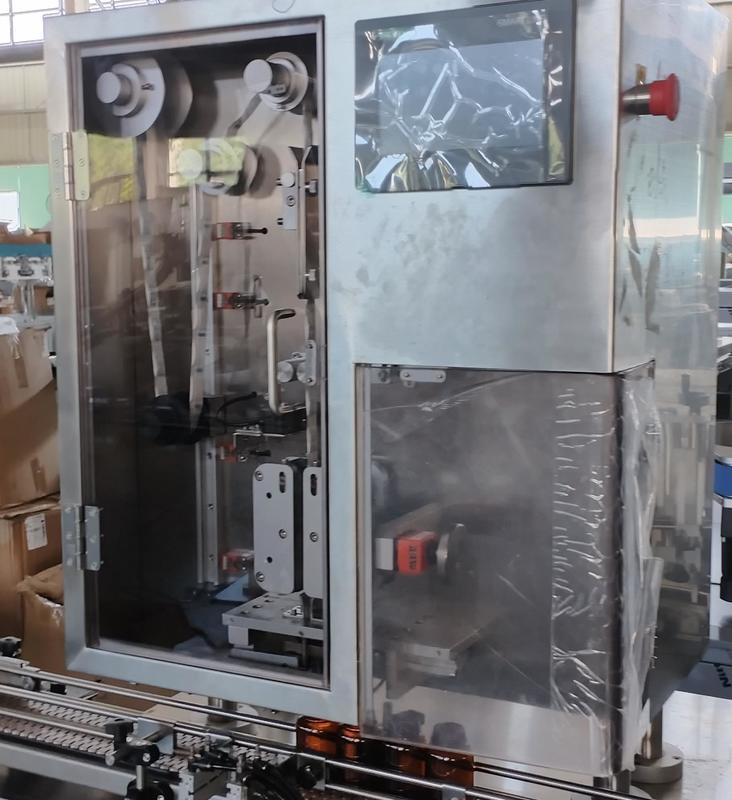

PharmaDry Desiccant Filling System
| projects | parameters |
| max.speed | 130 bottles/min |
| bottle volume(ml) | within 350ml |
| desiccant roller specificatiion(mm) | Extermal diameter within 300mm,inner diameter is 75mm,the thickness of desiccant between 90mm and 140mm. |
| dessicant bag specification | The width of desiccant bag can't wider than 35mm,the length of desiccant bag depends on bottle and packing amount |
| voltage/frequency(V/Hz) | 220/50 |
| total power(kw) | 0.5 |
| air consumption(m³/h) | 0.1 |
| net weight (kg) | 280 |
1.Core Function
This automated machinery precisely inserts desiccants into pharmaceutical packaging, controlling moisture to maintain drug efficacy. It replaces manual insertion to reduce errors and enhance production efficiency in medication packaging.
2.Operational Capabilities
Desiccant Handling: Processes sachets and canisters with accurate placement in bottles or cartons.
Custom Dosing: Adjusts quantities based on packaging dimensions and moisture requirements.
Line Integration: Synchronizes with packaging equipment via sensors for continuous production flow.
3.Machine Traits
High-speed operation: up to 200 packages per minute.
PLC and servo systems ensuring placement precision.
User-friendly interface with multi-language support.
GMP-compliant stainless steel construction.
Quick adjustments for different packaging types.
4.Shipping Details
Foam-wrapped in custom-fit boxes.
Domestic/international shipping via reputable couriers.
Includes manual and tracking for delivery monitoring.
