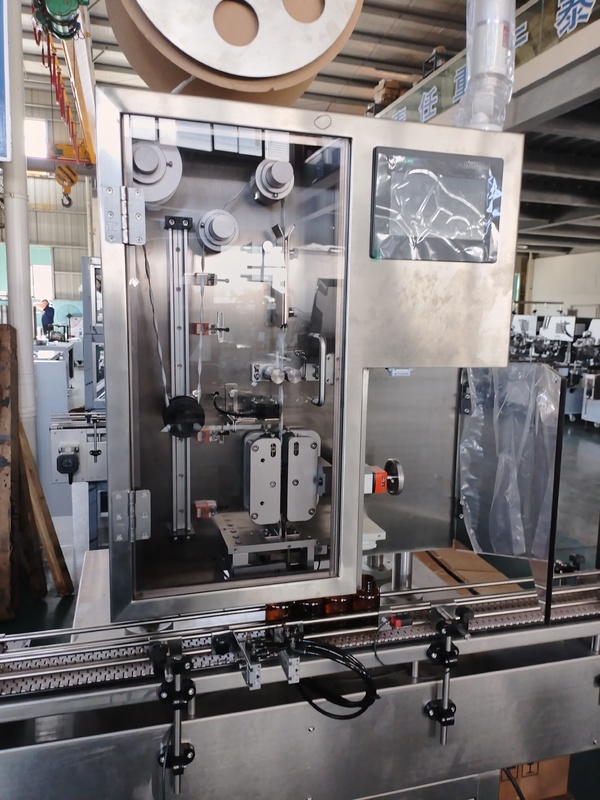

SHARK & JANGLI GROUP COMPANY
Product Details
Place of Origin: China
Brand Name: shark
Certification: CE
Model Number: BPG-200
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 5300-17000 USD
Packaging Details: wooden case
Delivery Time: 9 weeks
Payment Terms: T/T,L/C
Supply Ability: 100 per year
Products: |
Desiccant Inserting Machine |
Model: |
BPG-200 |
Max.speed: |
130 Bottles/min |
Net Weight: |
280kg |
Frequency: |
50Hz |
Voltage: |
220V |
Products: |
Desiccant Inserting Machine |
Model: |
BPG-200 |
Max.speed: |
130 Bottles/min |
Net Weight: |
280kg |
Frequency: |
50Hz |
Voltage: |
220V |
MediGuard Desiccant Automation System
| projects | parameters |
| max.speed | 130 bottles/min |
| bottle volume(ml) | within 350ml |
| desiccant roller specificatiion(mm) | Extermal diameter within 300mm,inner diameter is 75mm,the thickness of desiccant between 90mm and 140mm. |
| dessicant bag specification | The width of desiccant bag can't wider than 35mm,the length of desiccant bag depends on bottle and packing amount |
| voltage/frequency(V/Hz) | 220/50 |
| total power(kw) | 0.5 |
| air consumption(m³/h) | 0.1 |
| net weight (kg) | 280 |
1.Core Purpose
This automated machinery inserts desiccants precisely into pharmaceutical packaging, creating moisture barriers that protect medication integrity. It enhances production efficiency while meeting strict regulatory standards for drug safety.
2.Key Functions
Desiccant Handling: Processes sachets and canisters with accurate placement in bottles or cartons.
Custom Dosing: Adjusts quantities based on packaging dimensions and moisture sensitivity.
Production Sync: Integrates with packaging lines via sensors for continuous workflow.
3.Machine Traits
Processes 200+ packages/minute for large-scale operations.
Advanced servo technology for high precision.
Intuitive touch-screen with multi-language support.
GMP-compliant design with easy disassembly.
Versatile handling of various packaging formats.
4.Logistics Details
Foam-protected in heavy-duty custom boxes.
Global shipping options with tracking provided.
Includes instruction manual and customs support.
